DL-2 Door Light Cut-Out Machine 2006

  2. Door Machinery
  3. Used Machines
  4. DL-2 Door Light Cut-Out Machine for sale
Machine Description

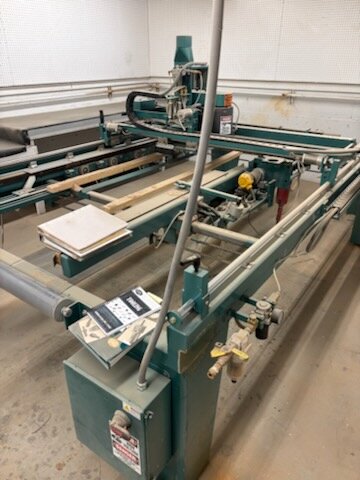

KVAL DL-2 Door Light Cut-Out Machine in good working condition. This machine produces rectangular, curved, and multi-light cut-outs in wood or metal doors up to 16 gauge. Face boring is standard with a built-in steel template adjustable for backsets from 2-3/8” to 2-3/4”. The three-speed cutter head is supported by cross-mounted linear bearing shafts for length and width travel, and adjustable stops lock directly onto the shaft — no cut-out templates required for rectangular lights.

Included with sale:

  • Original KVAL DL-2 instruction manual

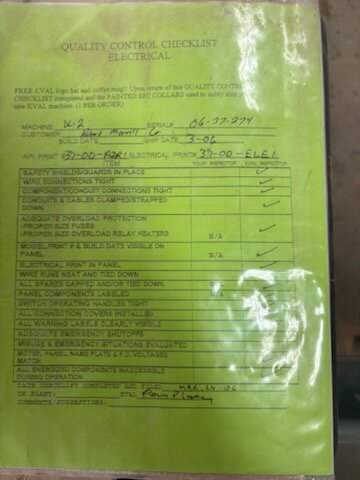

  • Quality control / electrical checklist documentation

Asking $11,500 — negotiable. Does not include shipping; shipping can be arranged at an additional cost. Machine is available for local pickup. Serious inquiries only.

Listing Details
Footprint/Weight
7' x 10' (115"L x 84"W x 60"H) / approx. 2,000 lbs.
Electrical
Dual power sources — 3-phase 260V / 8A and 1-phase 120V / 13-6A

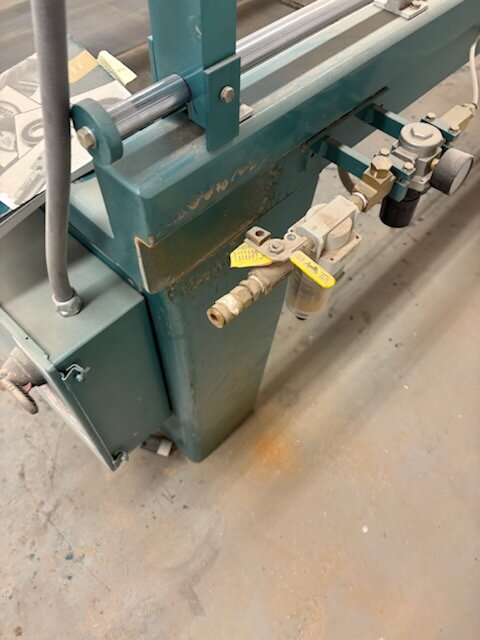

Pneumatic
Air supply connection included
  • Included Machines
  • DL-2 (SN23-201-065)
    Condition: 3/5
